Carbide Tips



We are an ISO 9001 certified facility that offers a wide range of carbide tips to match the various challenges that you might face. Producing over fifty grades of cemented carbide and the ability to create new ones, we can find a carbide grade to meet your needs. Our versatility helps us to check and respond easily to evolving conditions and customer needs. All of our tips provide superb penetration and maximum productivity – regardless of whether you work in soft, medium-hard, or extremely hard and demanding conditions.

Retainers Selection

Our retainer selection keeps tool changes quick and reduces your downtime.

The Hybrid Difference

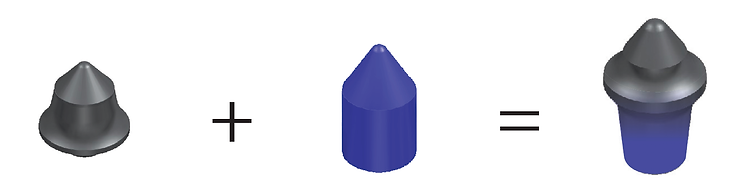

XCAL TOOLS hybrid design gives you a blend of the efficient cutting characteristics of our CAP designs, combined with the durability and long life of a plug tip. Our design provides excellent penetration while retaining maximum strength, shear resistance, and durability in challenging conditions, improves safety, efficiency, and working conditions— leading to increased performance, productivity, and lowered production costs.

The Hybrid Difference.png

Cap Carbide Tips

For superior penetration: the larger carbide shoulder provides excellent protection against steel wash.

Insert Carbide Tips

For high-impact conditions, or working with hard materials where steel wash is not an issue.

The Hybrid Carbide Tip

The tapered bottom design provides more strength where it’s needed most, helping to prevent carbide fracture.

Cap Carbide Tips.png

Cap Carbide Tips

Valve seat carbide tips are preferred over flat bottom tips providing a stronger bond between the carbide and steel giving more stability and support in highly abrasive conditions.

Insert Carbide Tips

Insert carbide tips are best for penetration applications where steel wash is not an issue. These tips provide a strong bond between carbide and steel giving more stability and support proving ideal for use in hard, high-impact conditions.

Hybrid Carbide Tips

Hybrid tips were developed for all cutting requirements – no matter how tough. You won’t need to switch tools when your conditions change.

Wide-Top Carbide Tips.png

Wide-Top Carbide Tips

Wide-Top tip combines the abrasive resistance of a cap tip with the impact resistance of a plug tip to maximize strength and steel support for ultimate durability in the most challenging conditions.

Drilling Products


TB01C

18mm

Shank

0.72 in

18 mm

Tip Diameter

0.638 in

16.0 mm

Gauge

1.79 in

45.0 mm


TB01

18mm

Shank

0.72 in

18 mm

Diameter

0.638 in

16.0 mm

Gauge

1.79 in

45.0 mm


TB03

18mm

Shank

0.72 in

18 mm

Diameter

0.476 in

12.1 mm

Gauge

1.79 in

45.0 mm


TB73

18mm

Shank

0.72 in

18 mm

Diameter

0.591 in

15.0 mm

Gauge

1.79 in

45.0 mm


TC403L

19mm

Shank

0.74 in

19 mm

Diameter

0.476 in

12.1 mm

Gauge

1.73 in

44.0 mm


TC403

19mm

Shank

0.74 in

19 mm

Diameter

0.476 in

12.1 mm

Gauge

1.73 in

44.0 mm


TC473L

19mm

Shank

0.74 in

19 mm

Diameter

0.591 in

15.0 mm

Gauge

1.73 in

44.0 mm


TC473

19mm

Shank

0.74 in

19 mm

Diameter

0.591 in

15.0 mm

Gauge

1.73 in

44.0 mm


TC501

19mm

Shank

0.76 in

19 mm

Diameter

0.638 in

16.0 mm

Gauge

1.79 in

45.0 mm

TC503

19mm

Shank

0.76 in

19 mm

Diameter

0.476 in

12.1 mm

Gauge

1.79 in

45.0 mm


TC573

19mm

Shank

0.76 in

19 mm

Diameter

0.591 in

15.0 mm

Gauge

1.79 in

45.0 mm


TC501C

19mm

Shank

0.76 in

19 mm

Diameter

0.638 in

16.0 mm

Gauge

1.79 in

45.0 mm


TC503C

22mm

Shank

0.76 in

19 mm

Diameter

0.476 in

12.1 mm

Gauge

1.79 in

45.0 mm


TJ401

22mm

Shank

0.86 in

22 mm

Diameter

0.638 in

16.0 mm

Gauge

1.73 in

44.0 mm


TJ403

22mm

Shank

0.86 in

22 mm

Diameter

0.476 in

12.1 mm

Gauge

1.73 in

44.0 mm


TJ474

22mm

Shank

0.86 in

22 mm

Diameter

0.708 in

17.98 mm

Gauge

1.73 in

44.0 mm


TJ401L

22mm

Shank

0.86 in

22 mm

Diameter

0.638 in

16.0 mm

Gauge

1.73 in

44.0 mm


TJ403L

22mm

Shank

0.86 in

22 mm

Diameter

0.476 in

12.1 mm

Gauge

1.73 in

44.0 mm


TJ474L

22mm

Shank

0.86 in

22 mm

Diameter

0.708 in

17.98 mm

Gauge

1.73 in

44.0 mm


TJ474L

22mm

Shank

0.86 in

22 mm

Diameter

0.794 in

20.2 mm

Gauge

1.73 in

44.0 mm


TJ501

22mm

Shank

0.86 in

22 mm

Diameter

0.36 in

9.2 mm

Gauge

1.79 in

45.0 mm


TJ503

22mm

Shank

0.86 in

22 mm

Diameter

0.40 in

10.0 mm

Gauge

1.79 in

45.0 mm


DR35

25mm

Shank

1.0 in
25 mm

Diameter

0.476 in

12.1 mm

Gauge

2.5 in

64.0 mm


DR73

25mm

Shank

1.0 in
25 mm

Diameter

0.591 in

15.0 mm

Gauge

2.5 in

64.0 mm


DR74

25mm

Shank

1.0 in
25 mm

Diameter

0.708 in

17.9 mm

Gauge

2.5 in

64.0 mm


DR75

25mm

Shank

1.0 in
25 mm

Diameter

0.817 in

20.75 mm

Gauge

2.5 in

64.0 mm


DR76

25mm

Shank

1.0 in
25 mm

Diameter

0.930 in

23.62 mm

Gauge

2.5 in

64.0 mm


DRW74

25mm

Shank

1.0 in
25 mm

Diameter

0.708 in

17.98 mm

Gauge

2.5 in

64.0 mm


DRW75

25mm

Shank

1.0 in
25 mm

Diameter

0.817 in

20.75 mm

Gauge

2.5 in

64.0 mm


DRW76

25mm

Shank

1.0 in
25 mm

Diameter

0.930 in

23.62 mm

Gauge

2.5 in

64.0 mm


DRW99

25mm

Shank

1.0 in
25 mm

Diameter

0.750 in

19.0 mm

Gauge

2.5 in

64.0 mm


DX19

30mm

Shank

1.5 in
30 mm

Diameter

0.86 in

21.84 mm

Gauge

2.75 in

70.0 mm


DX39

30mm

Shank

1.5 in
30 mm

Diameter

0.775 in

19.68 mm

Gauge

2.75 in

70.0 mm


DX76

30mm

Shank

1.5 in
30 mm

Diameter

0.930 in

23.62 mm

Gauge

2.75 in

70.0 mm


DX21

30mm

Shank

1.5 in
30 mm

Diameter

0.707 in

17.95 mm

Gauge

2.75 in

70.0 mm


DX31

30mm

Shank

1.5 in
30 mm

Diameter

0.817 in

20.75 mm

Gauge

2.75 in

70.0 mm


DX20

30mm

Shank

1.5 in
30 mm

Diameter

1.30 in

33.02 mm

Gauge

2.5 in

64.0 mm


DXL08K

30mm

Shank

1.5 in

30 mm

Diameter

0.707 in
17.95 mm

Gauge

3.5 in

89.0 mm


DXL21K

30mm

Shank

1.5 in

30 mm

Diameter

0.707 in
17.95 mm

Gauge

3.5 in

89.0 mm


DXL74K

30mm

Shank

1.5 in

30 mm

Diameter

0.708 in
17.9 mm

Gauge

3.5 in

89.0 mm


DXL75K

30mm

Shank

1.5 in

30 mm

Diameter

0.50 in
12.8 mm

Gauge

2.5 in

64.0 mm


XJL7

45mm

Shank

1.8 in

45 mm

Diameter

0.26 in
6.7 mm

Gauge

1.83 in

46.7 mm
